What is a JDBC driver?
A JDBC driver implements (provides code) the interfaces in the JDBC API. This enables a Java program to send SQL queries to a DBMS and receive back the results.
The java.sql package that comes along with JDK, contains various classes which specify the behavior. The actual code implementing that behavior is provided by the DBMS vendors. The DBMS vendors provide third-party drivers which should be installed for a Java program to communicate with the DBMS.
JDBC driver types
JDBC driver implementations vary because of the different types of operating systems and hardware platforms on which Java can run. Sun Microsystems has divided the JDBC driver implementations into four types.

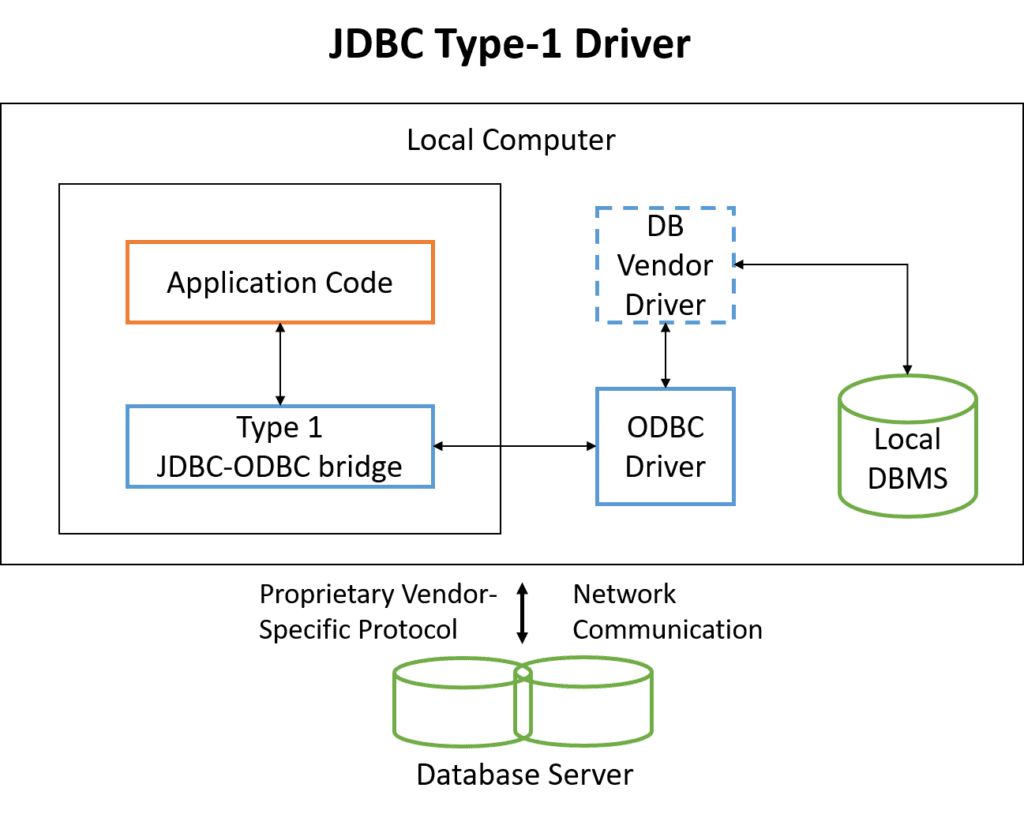

Type 1 – JDBC-ODBC bridge driver
In a Type 1 driver, the JDBC-ODBC bridge driver is used to communicate with the ODBC driver installed on each client machine. For using ODBC, we need to configure a Data Source Name (DSN) that represents the target database.
ODBC drivers are now-a-days obsolete and were the only choice when Java first came out. At that time database vendors only supported ODBC drivers. Now, this type of driver is only recommended for experimental purpose or when there is no other alternative.
The JDBC-ODBC bridge that was released along with Java 1.2 is a good example of this type of driver. Type 1 driver can be illustrated as shown below.

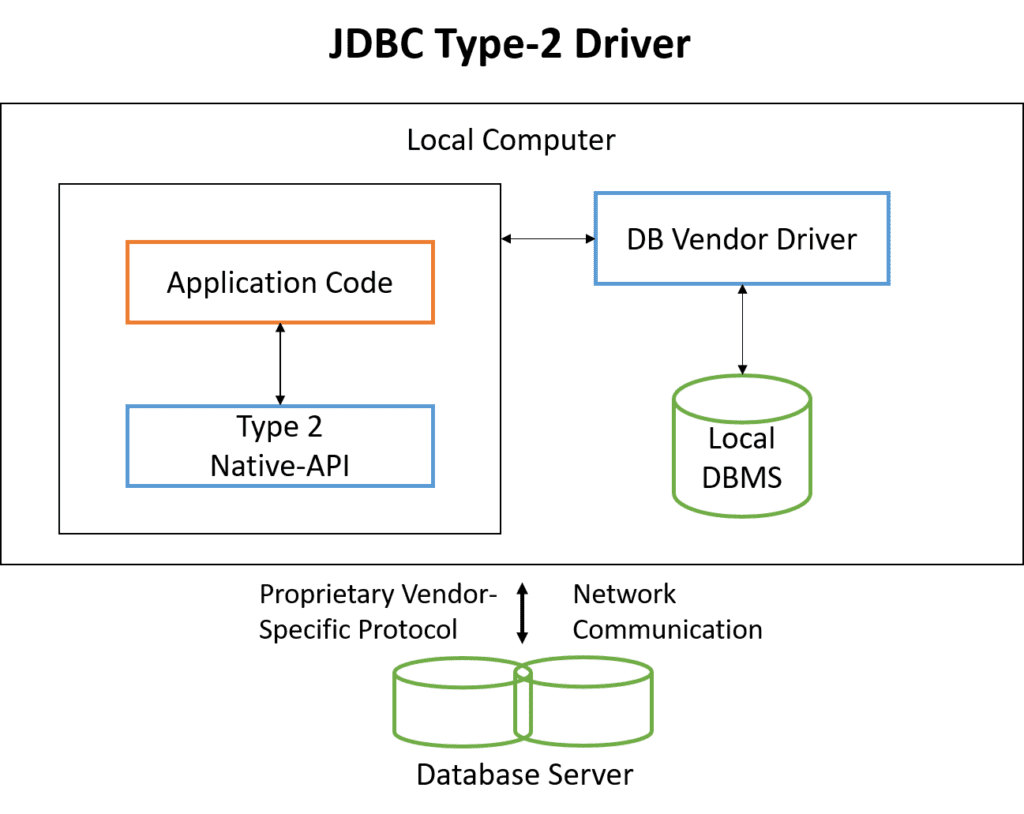

Type 2 – JDBC-Native API driver
In a type 2 driver, the JDBC API calls are converted into native C/C++ calls which are unique to the database. These drivers are made available by the DBMS vendors. This vendor-specific driver needs to be installed on every client machine.
This type of driver is obsolete now, but you can see a raise in the performance of application as there is no intermediate ODBC driver. The Oracle Call Interface (OCI) is an example of type 2 driver. Type 2 driver can be illustrated as shown below.

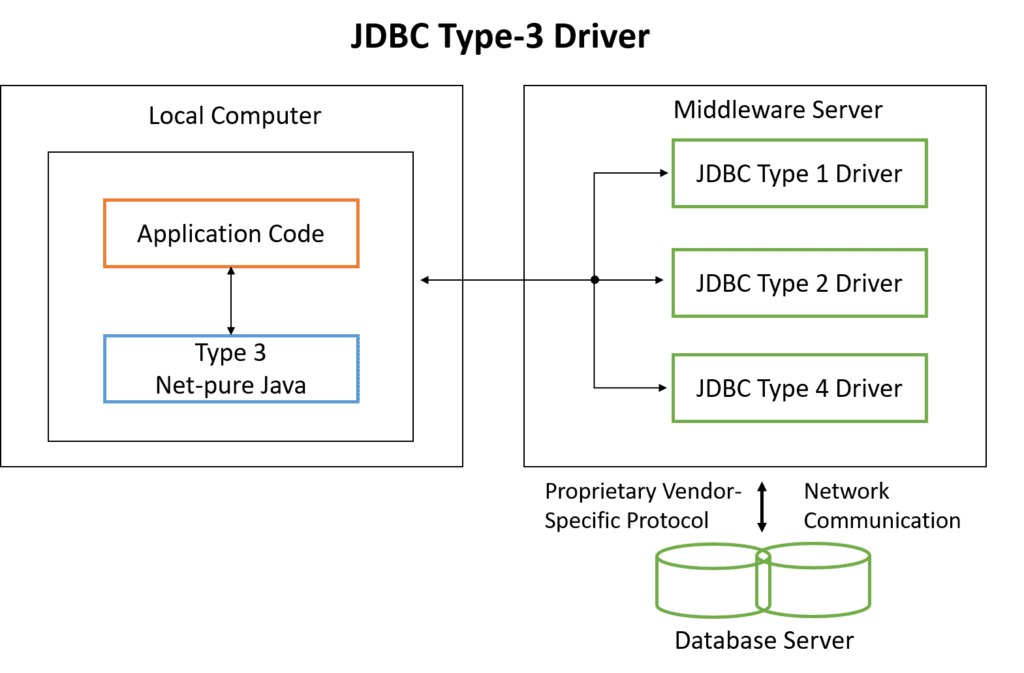

Type 3 – JDBC-Net pure Java driver
The type 3 driver follows the three-tier architecture. The JDBC clients use standard network socket communication to communicate with middleware which is generally an application server. The socket communication received is converted into database specific instructions by the middleware.
The type 3 driver is extremely flexible as it does not require software to be installed on each client machine. Further, a single driver enables to communicate with multiple databases. The only extra thing needed is, technical knowledge related to configuring an application server.
The application server can use either type 1, type 2 or type 4 driver to communicate with the database. Type 3 driver can be illustrated as shown below.

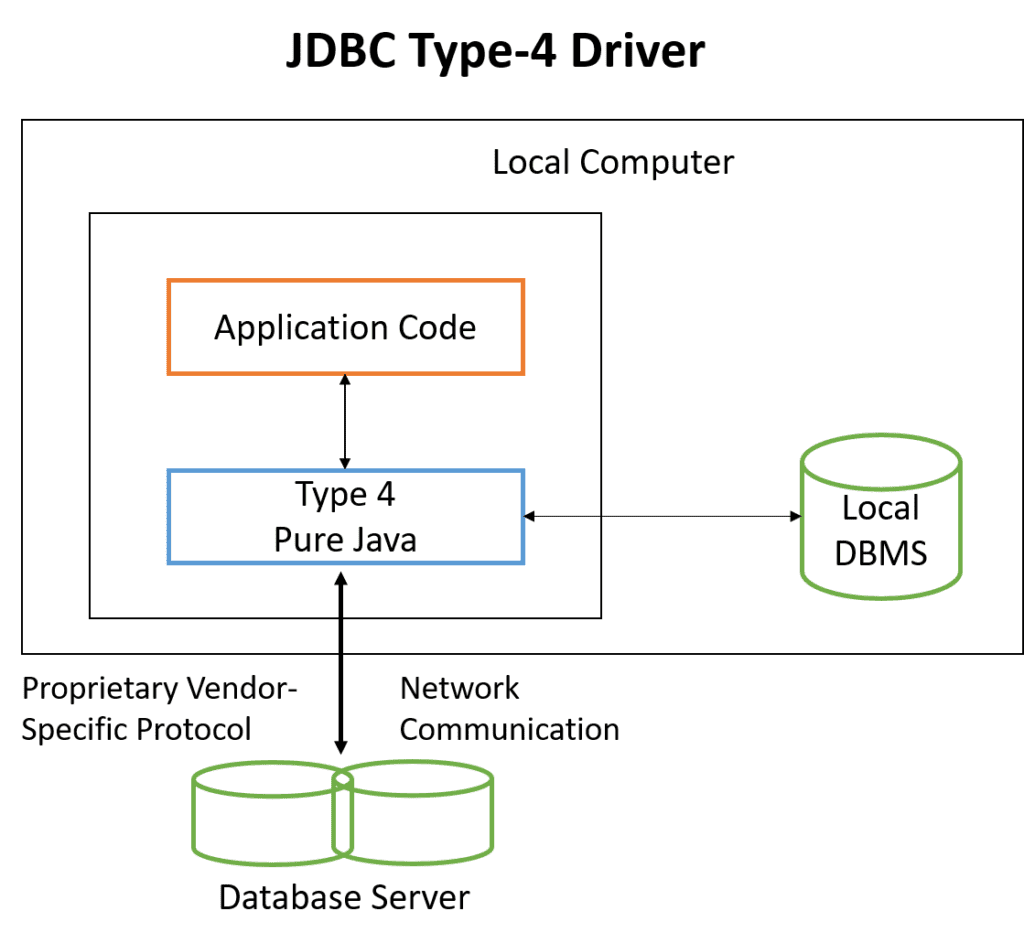

Type 4 – Pure java driver
In type 4 driver, the pure java-based driver directly communicates with the database through socket connection. This driver is the highest performance driver and is typically provided by the database vendor.
This driver is extremely flexible as no special type of software needs to be installed on both client and the server. Further, the driver files can be downloaded automatically. MYSQL’s Connector/J driver is an example of type 4 driver. Type 4 driver can be illustrated as shown below.
When to use which type of JDBC driver?
If the Java application is trying to access only one type of database like Oracle, MYSQL, Sybase, etc., type 4 driver is preferable.
If the Java application is trying to access multiple types of databases at the same time, type 3 driver is preferable.
When type 3 or type 4 drivers are not available, type 2 driver is more preferable as it offers better performance.
Finally, if all other types of drivers are not available, type 1 driver can be used for connecting with the database.
